Overview

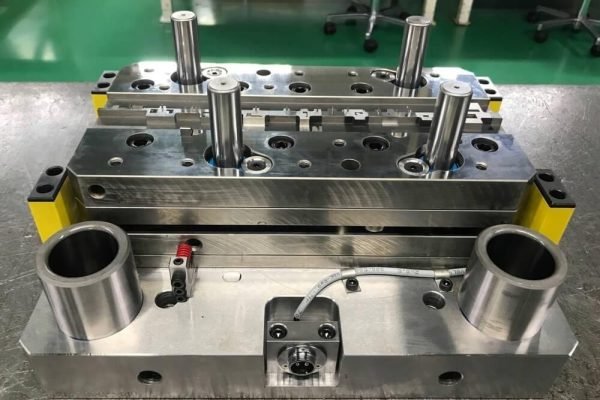

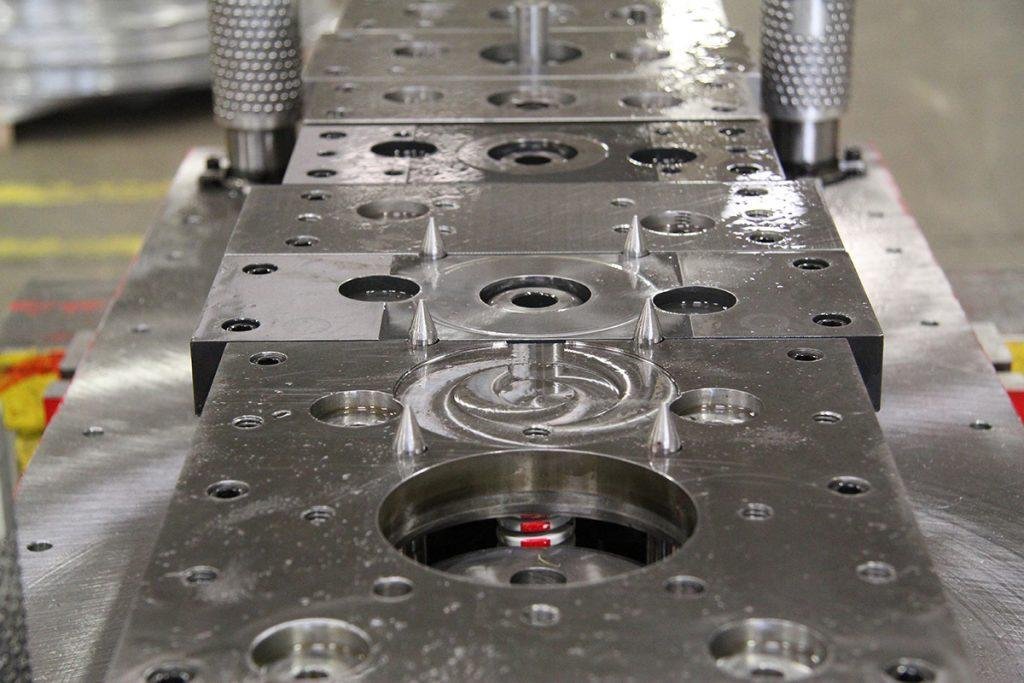

Customized Dies as per Drawings are specially engineered dies manufactured strictly according to customer-provided drawings, samples, or technical specifications. These dies are developed to match exact component geometry, tolerances, and functional requirements.
Custom-designed dies ensure high dimensional accuracy, smooth surface finish, and consistent repeatability, making them suitable for precision and application-specific manufacturing needs.
Key Features
- Manufactured Strictly as per Customer Drawings
- High Dimensional Accuracy and Tight Tolerances
- Suitable for Complex and Application-Specific Components
- Consistent Output and Repeatability
- Durable Construction for Long Tool Life
- Designed for Efficient and Reliable Production
Materials & Construction of Customized Dies
Our customized dies are manufactured using carefully selected materials based on application, component complexity, and production volume to ensure accuracy, durability, and long-term performance.
Aluminium customized dies are suitable for prototype development and low to medium production volumes.
They are lightweight, easy to machine, and cost-effective for quick development and short production runs.
Tool steel customized dies are ideal for regular production applications.
They offer improved strength, wear resistance, and dimensional stability compared to aluminium dies.
Hardened steel customized dies are designed for high-volume and long-term production.
They provide superior hardness, excellent wear resistance, and consistent performance over extended production cycles.
Why Our Customized Dies Stand Out
Drawing-Based Engineering
All customized dies are developed strictly as per customer drawings to ensure accurate geometry and functional performance.
Precision Manufacturing
Advanced machining and CAD/CAM tools are used to achieve tight tolerances and consistent quality.
Application-Focused Design
Each die is designed based on application needs, production volume, and material flow requirements.
Reliable Tool Life
High-quality materials and proper heat treatment ensure long-lasting and dependable die performance.
Customized Dies as per Drawings – Frequently Asked Questions
These are dies manufactured strictly according to customer drawings, samples, or specifications to achieve exact component requirements.
Yes, customized dies can be accurately developed using physical samples through reverse engineering.
Customized dies are manufactured using aluminium, tool steel, or hardened steel based on application and production volume.
Yes, tool steel and hardened steel customized dies are ideal for continuous and high-volume production.
Customized dies offer high dimensional accuracy and repeatability when developed as per approved drawings.
Yes, all customized dies are thoroughly inspected and tested before delivery to ensure performance and reliability.
Get Customized Dies Built as per Your Drawings
Share your drawings or samples with us and get precision-engineered customized dies designed for accuracy, durability, and reliable production.
